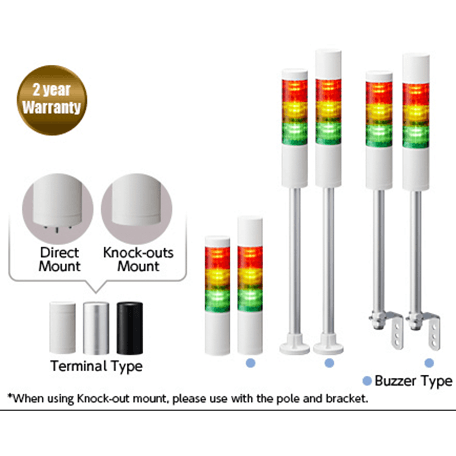

LR5 Series 50mm LED Signal Tower Lights

LR5 Series 50mm LED Signal Tower Lights

LR5 Series 50mm LED Signal Tower Lights

Next generation signal tower series featuring ultra-bright LEDs, a modular design, and a wide-selection of options to take on the most challenging applications.

Read More:

  1. Pengembangan Sistem Lampu Andon Nirkabel yang Terintegrasi dengan Sistem Produksi
  2. Keunggulan Real-Time Data Tracking menggunakan Sistem Wireless Andon
  3. Mempersingkat Proses Produksi dengan Sistem Wireless Andon
Dapatkan Penawaran Terbaik
  • Hubungi kami dengan klik tombol diatas
  • Konsultasikan kebutuhan Anda
  • Tim kami akan memberikan penawaran terbaik
  • Pengiriman & instalasi produk
Harga terbaik
Tersedia layanan instalasi

Tersedia layanan maintenance

Garansi 1 tahun

Gratis Konsultasi

LR5 Series 50mm LED Signal Tower Lights

LR5 Series 50mm LED Signal Tower Lights

Next generation signal tower series featuring ultra-bright LEDs, a modular design, and a wide-selection of options to take on the most challenging applications.

Read More:

  1. Pengembangan Sistem Lampu Andon Nirkabel yang Terintegrasi dengan Sistem Produksi
  2. Keunggulan Real-Time Data Tracking menggunakan Sistem Wireless Andon
  3. Mempersingkat Proses Produksi dengan Sistem Wireless Andon

Next generation signal tower series featuring ultra-bright LEDs, a modular design, and a wide-selection of options to take on the most challenging applications.

Read More:

  1. Pengembangan Sistem Lampu Andon Nirkabel yang Terintegrasi dengan Sistem Produksi
  2. Keunggulan Real-Time Data Tracking menggunakan Sistem Wireless Andon
  3. Mempersingkat Proses Produksi dengan Sistem Wireless Andon

Product Features

    • Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
    • Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
    • A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
    • A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
    • Standard body color: Off-white. Silver and black bodies available as components only (DC24V Only).
    • Body unit with terminal block available as a component in off-white, silver, or black (LR5-WT & LR5-KT – DC24V only). Click here for more details.
    • Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).
    • Available in DC12V (special order) and DC24V.
    • Available with Clear lens (special order).

Model Specifications

Operating Ambient Temperature -20℃ – +50℃
Operating Humidity Range 90% RH or less, no condensation
Storage Temperature Range -30℃ – +60℃
Storage Humidity Range 90% RH or less, no condensation
Mounting Location Indoor Use
Mounting Direction Upright Position
Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Conditions Upright Position
Insulation Resistance More than 1MΩ at DC500V between the power input lead and chassis
Withstand Voltage AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
Flash Rate 60 ±2 Flashes / min
Sound Level LR5Typ. 85dB  LR5 DC12VTyp. 80dB
Sound Reduction*2 ab. -10dB reduction
Environmental Conditions Buzzer Sound No.4 (Sweep) from all directions at a 1m distance
Buzzer Sound 4 patterns*2 No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound
Transistor Output NPN / PNP
Conformity Standards ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN 50581)
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
